Saltwater Chlorinator

01 / The cell

This is the cell you buy.

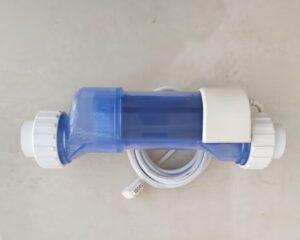

Clear housing, union at the base, two ports. Nothing you cannot see.

02 / The stack

Take the housing off and you find plates.

Titanium, spaced and sealed. The hardware is not the hard part — the value is the few microns on the surface.

Plates 7 × 1.0 mm Plate gap 4.0 mm

03 / The life

10,000 hours. Then the layer is gone — and only the layer.

Which is why a spent cell is a consumable, not a failure. You replace the coating, not the chlorinator.

0 HOURS OF SERVICE

Exploded view, three stops

The housing comes off. Seven coated plates are what is left.

Wide render of the assembled salt chlorinator cell: clear moulded housing, white union nut, two ports, the plate stack standing inside.
Frame 00 / 89

01 / The cell

This is the cell you buy.

Clear housing, union at the base, two ports. Nothing you cannot see.

Render part-way through the explode: housing and end caps have lifted clear and the seven-plate stack stands on its own.
Frame 45 / 89

02 / The stack

Take the housing off and you find plates.

Titanium, spaced and sealed. The hardware is not the hard part — the value is the few microns on the surface.

Tight render on the coated face of the plate stack, the seven plate edges catching the light along one side.
Frame 89 / 89

03 / The life

10,000 hours. Then the layer is gone — and only the layer.

Which is why a spent cell is a consumable, not a failure. You replace the coating, not the chlorinator.

RP-series cell · seven solid plates, all coated, 1 mm thick, 4 mm apart — to the factory’s figures.

Method. Housing, end frames and union cap come from the factory’s own CAD; the plates are built to the factory’s stated figures — 1.0 mm thick, 4.0 mm apart.

Your pool, your climate → your cell.

Match on water volume first. Then send us a photo of the cell you are replacing so we can check the unions against your plumbing before you order.

Length × width × average depth, in metres.

Recommended
RP-25
Reverse polarity · self-cleaning
Chlorine output
25 g/h
DC current
25 A
Rated for
up to 65 m³ in a hot climate
Salinity
3,500–7,000 ppm

Sized from the volume you entered.

Send this on WhatsApp Email instead

What is Saltwater Chlorinator

Saltwater chlorination is a process that uses dissolved salt (3,500–7,000 ppm or 3.5–7 g/L) for the chlorination of swimming pools and hot tubs. The chlorine generator (also known as salt cell, salt chlorine generator, salt chlorinator, or SWG) uses electrolysis in the presence of dissolved salt to produce chlorine gas or its dissolved forms, hypochlorous acid and sodium hypochlorite, which are already commonly used as sanitizing agents in pools. Hydrogen is produced as byproduct too.

Salt chlorine generators have risen in popularity over the years as a better and easier way to keep pools clean. Some people prefer not to use chemicals in their pools, while others just want to make the cleaning process a little easier on themselves. That’s where salt chlorine generators—also called salt water chlorinators, salt chlorinators, or salt generators—come into play.

Saltwater chlorinators are the main component you add to your pool system to eliminate the need for chlorine & shock, automatically keeping your pool crystal clear at a fraction of the expense of traditional pool maintenance. No harsh chemical effects – get a hassle free pool and a luxurious natural swimming experience.

Salt systems eliminate the “chloramines” that cause these harsh chemical effects in traditional pools. That means soft, smooth, silky water and no more red eyes, itchy skin, bleached hair, or chemical smells.

A saltwater chlorine generator is the most cost effective way to maintain a pool. It generates free chlorine, and when its used up, its “cell” is easily replaced at a fraction of the cost. Over its lifetime, you can save up to 40% or more over the amount of chlorine you would have to otherwise buy!

Pool salt systems work automatically every with your pump to keep the pool crystal clear & algae free. No need to store, drag around, or dump in buckets of chlorine all the time. The salt system lets you know how its working.

Replacement Salt Cells

We carry titanium salt cells for part saltwater chlorine generator brands. These replacement cells will easily replace your existing salt cell in minutes – no professional installation required.

We have multiple models of saltwater chlorinator for customers to choose, please click on the sub section to view the specifications and models you need as follow.
