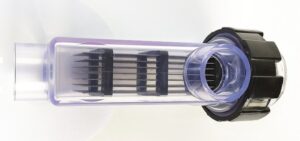

01 / The cell
Moulded clear housing, a union cap, and seven titanium plates standing in the flow. Nothing is hidden inside this part, which is rather the point: what you are paying for is the thing you can look at.
02 / The stack
AC is monopolar: the current always runs the same way, so the anodes carry the ruthenium–iridium layer and the cathodes stay bare titanium. That coated area is the working surface, and working surface is the whole product.
03 / The life
When a cell stops making chlorine the titanium under the film is still titanium — it is the film that has been consumed. That is why coating load is the one specification worth arguing about, and why a cheap cell is cheap in exactly one place.
Push-in, three stops
01 / The cell
Moulded clear housing, a union cap, and seven titanium plates standing in the flow. Nothing is hidden inside this part, which is rather the point: what you are paying for is the thing you can look at.
02 / The stack
AC is monopolar: the current always runs the same way, so the anodes carry the ruthenium–iridium layer and the cathodes stay bare titanium. That coated area is the working surface, and working surface is the whole product.
03 / The life
When a cell stops making chlorine the titanium under the film is still titanium — it is the film that has been consumed. That is why coating load is the one specification worth arguing about, and why a cheap cell is cheap in exactly one place.
Coated anodes, bare titanium cathodes. Polarity never reverses, so scale builds up: plan on a periodic acid wash, 1 part HCl to 15 parts water.
Every plate is coated on both faces, because every plate takes its turn as the anode. The cell sheds its own scale. No acid washing.
Method. Housing, end frames and union cap come from the factory’s own CAD; the plates are built to the factory’s stated figures — 1.0 mm thick, 4.0 mm apart.
Our AC salt chlorinator has been in use in the market for over 20 years and is our mature product. Our customers have always been very satisfied with the quality of this product.
AC chlorinator cell consists of parallel titanium plates, the anode of AC chlorinator cells uses high-quality ruthenium iridium coated titanium anodes, and the cathode uses pure titanium plates. All titanium electrodes are produced by us ourselves, which have higher performance and service life than similar products on the market.
AC chlorinator cells do not have the function of reversing polarity, the cell will require periodic cleaning in a mild acid solution (1 part HCl to 15 parts water) which will remove the buildup of calcium compound crystals, such as calcium carbonate or calcium nitrate. Excessive buildup can reduce the effectiveness of the cell. Running the chlorinator for long periods with insufficient salt in the pool can strip the coating off the cell which then requires an replacement ACP cell (Titanium electrode assembly), as can using too strong an acid wash.
Our AC series salt chlorinator can replace the AC product for Auto Chlor, now we have five models for you to choose from as follows:
AC Series Salt Chlorinator Parameter:
Model | Chlorine Output (g/h) | Input AC Power (kWh) | Input DC current (A) | Input DC voltage (V) | Water Flow | Dimensions | Pool Size (Hot climates) m3 | Pool Size (Cool climates) m3 | Salinity Range |
AC-10 | 10 | 0.098 | 10 | 5~7 | 150 – 450 | 35 x 20 x 15 | 20 | 40 | 3500 - 7000 |
AC-15 | 15 | 0.168 | 15 | 5~7 | 150 – 450 | 35 x 20 x 15 | 35 | 60 | 3500 - 7000 |
AC-20 | 20 | 0.222 | 20 | 5~7 | 150 – 450 | 35 x 20 x 15 | 45 | 80 | 3500 - 7000 |
AC-25 | 25 | 0.275 | 25 | 5~7 | 150 – 450 | 35 x 20 x 15 | 65 | 120 | 3500 - 7000 |
AC-35 | 35 | 0.505 | 35 | 5~7 | 150 – 450 | 35 x 20 x 15 | 120 | 180 | 3500 - 7000 |
If you are interested in our AC salt chlorinator and would like to purchase samples for testing, please click the shopping cart to purchase it.
